• Description
     9 947 934

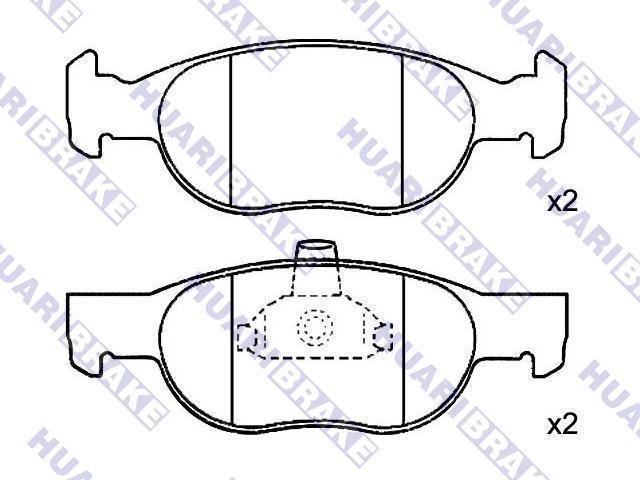

     Brake Pad Set
     SET

    Front Axle
    Brake System : ATE
    Width : 151.25 mm
    Height : 51.97 mm
    Thickness : 17.9 mm

Brake Pad Set:9 947 934
Model Engine Chassis Type CYL year
FIAT PUNTO (176)  4/97 - 9/99
FIAT PUNTO Convertible (176_)  4/97 - 6/00
FIAT PUNTO Van (176_)  4/96 - 2/00
LANCIA Y (840_)  0/96 - 9/03


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
