• Description
     04491-97201
     HR1697

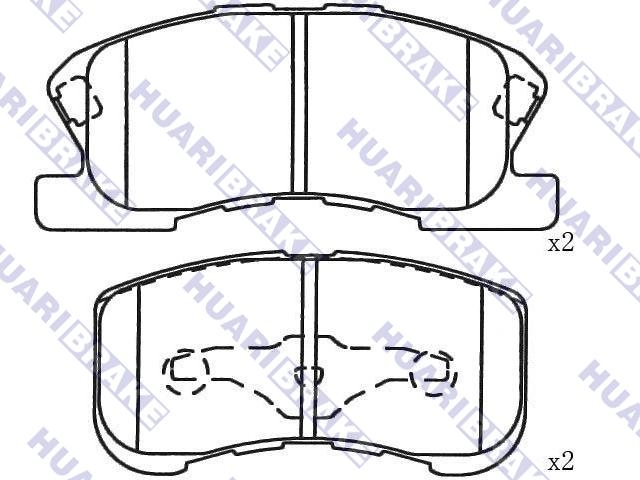

     Brake Pad Set
     SET

    Front Axle
    Brake System : AKB
    Width : 95 mm
    Width 1 : 115.4 mm
    Height : 49.5 mm
    Thickness : 15.5 mm

Brake Pad Set:04491-97201
Model Engine Chassis Type CYL year
DAIHATSU MOVE (L9_)  0/98 - 9/02
DAIHATSU SIRION (M1)  8/00 - 3/05
DAIHATSU YRV (M2)  2/01 - /
HUALI TERIOS  2/01 - 2/06


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
